Multi-Reg Nozzle (high-low)
- Pressure:
- 3000 PSI
- Temperature:
- 140° F
- Weight:
- .34 lb

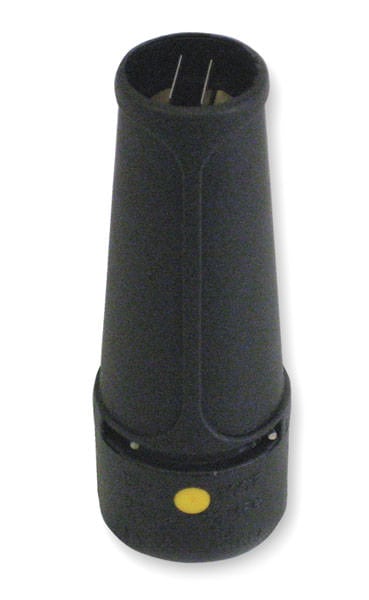

Multi-Reg Nozzle
| Pressure | 3200 PSI |
|---|---|
| Temperature | 300° F |
| Weight | .34 lb |
| Orifice | 3.0 |
| Inlet | 1/4" FPT |
Applications
For use when high and low pressures are needed and switching between a solid or a flat spray pattern without changing nozzle. Low pressure mode great for introduction of downstream chemicals.
Features
• Quick and easy spray pattern adjustment from 0˚ solid stream to 80˚ flat spray with a simple twist of the nozzle head.
• High/low feature allows for fast setting to high or low pressure mode.
• Stainless steel fins. Cover made of special heavy-duty glass-filled plastics.
• Orifice sizes from 3.0 to 6.0
| Part # | Pressure (PSI) | Temperature | Weight | Orifice | Inlet | Length | O.D. |
|---|---|---|---|---|---|---|---|
| 200059630 | 3200 PSI | 300° F | .34 lb | 3.0 | 1/4" FPT | 3.75 | 1.25 |
| 200059635 | 3200 PSI | 300° F | .34 lb | 3.5 | 1/4" FPT | 3.75 | 1.25 |
| 200059640 | 3200 PSI | 300° F | .34 lb | 4.0 | 1/4" FPT | 3.75 | 1.25 |
| 200059645 | 3200 PSI | 300° F | .34 lb | 4.5 | 1/4" FPT | ||
| 200059650 | 3200 PSI | 300° F | .34 lb | 5.0 | 1/4" FPT | 3.75 | 1.25 |
| 200059655 | 3200 PSI | 300° F | .34 lb | 5.5 | 1/4" FPT | 3.75 | 1.25 |
| 200059660 | 3200 PSI | 300° F | .34 lb | 6.0 | 1/4" FPT |
