ST-164A Chemical Bypass Injector
- Pressure:
- 5076 PSI
- Temperature:
- 212° F
- Weight:
- 4.80 lb

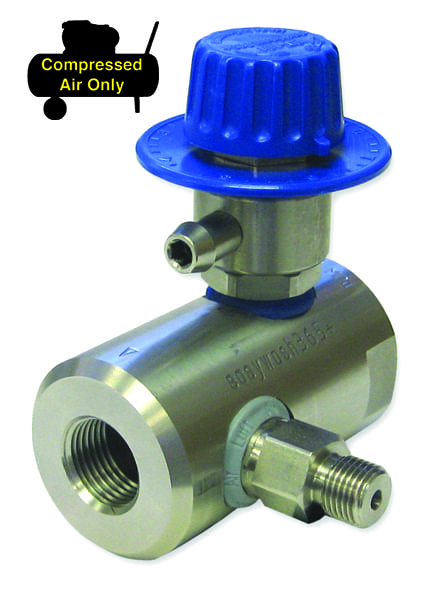

ST-160.2 Chemical Injector
| Pressure | 5000 PSI |
|---|---|
| Temperature | 194° F |
| Weight | 2.20 lb |
| Orifice | 3.0 |
| Inlet | 1/2" F |
| Outlet | 1/2" F |
Features
• Conserves chemicals
• Locks in position for accurate metering
• Multiple metering positions
• Optimum foam created 130°F or less
• Single chemical
• Food grade quality and specifications
| Part # | Pressure (PSI) | Temperature | Weight | Orifice | Inlet | Outlet | Hose Barb |
|---|---|---|---|---|---|---|---|
| 200160630 | 5000 PSI | 194° F | 2.20 lb | 3.0 | 1/2" F | 1/2" F | .35" |
| 200160631 | 5000 PSI | 194° F | 2.20 lb | 3.5 | 1/2" F | 1/2" F | .35" |
| 200160632 | 5000 PSI | 194° F | 2.20 lb | 4.0 | 1/2" F | 1/2" F | .35" |
| 200160633 | 5000 PSI | 194° F | 2.20 lb | 4.5 | 1/2" F | 1/2" F | .35" |
| 200160634 | 5000 PSI | 194° F | 2.20 lb | 5.5 | 1/2" F | 1/2" F | .35" |
| 200160635 | 5000 PSI | 194° F | 2.20 lb | 6.0 | 1/2" F | 1/2" F | .35" |
| 200160636 | 5000 PSI | 194° F | 2.20 lb | 7.0 | 1/2" F | 1/2" F | .35" |
| 200160637 | 5000 PSI | 194° F | 2.20 lb | 8.0 | 1/2" F | 1/2" F | .35" |
| 200160638 | 5000 PSI | 194° F | 2.20 lb | 8.5 | 1/2" F | 1/2" F | .35" |
| 200160639 | 5000 PSI | 194° F | 2.20 lb | 9.0 | 1/2" F | 1/2" F | .35" |
| 200160640 | 5000 PSI | 194° F | 2.20 lb | 10.0 | 1/2" F | 1/2" F | .35" |
| 200160641 | 5000 PSI | 194° F | 2.20 lb | 11.0 | 1/2" F | 1/2" F | .35" |
| 200160642 | 5000 PSI | 194° F | 2.20 lb | 12.0 | 1/2" F | 1/2" F | .35" |
| 200160643 | 5000 PSI | 194° F | 2.20 lb | 12.5 | 1/2" F | 1/2" F | .35" |
| 200160644 | 5000 PSI | 194° F | 2.20 lb | 14.0 | 1/2" F | 1/2" F | .35" |
| 200160645 | 5000 PSI | 194° F | 2.20 lb | 15.0 | 1/2" F | 1/2" F | .35" |
| 200160646 | 5000 PSI | 194° F | 2.20 lb | 18.0 | 1/2" F | 1/2" F | .35" |
