ST-160 Chemical Injector
- Pressure:
- 5000 PSI
- Temperature:
- 194° F
- Weight:
- .71 lb

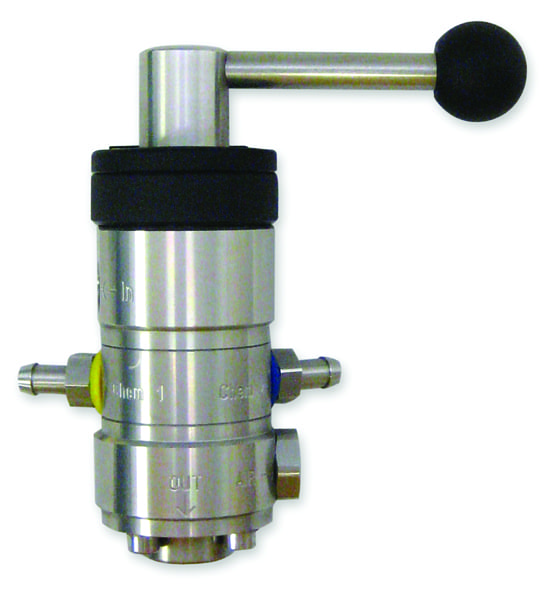

ST-164 Chemical Bypass Injector
| Pressure | 5076 PSI |
|---|---|
| Temperature | 212° F |
| Weight | 4.80 lb |
| Orifice | 3.5 |
| Inlet | 3/8" F |
| Outlet | 1/2" F |
Features
• Durable stainless steel construction
• 20 dosing nozzles included
• Food grade quality and specifications
• Integrated lever that allows you to go from disinfectant to foam to rinse
• Optimum foam created 130°F or less
| Part # | Pressure (PSI) | Temperature | Weight | Orifice | Inlet | Outlet | Hose Barb |
|---|---|---|---|---|---|---|---|
| 200164500 | 5076 PSI | 212° F | 4.80 lb | 3.5 | 3/8" F | 1/2" F | .35" |
| 200164502 | 5076 PSI | 212° F | 4.80 lb | 4.0 | 3/8" F | 1/2" F | .35" |
| 200164503 | 5076 PSI | 212° F | 4.80 lb | 4.5 | 3/8" F | 1/2" F | .35" |
| 200164504 | 5076 PSI | 212° F | 4.80 lb | 5.5 | 3/8" F | 1/2" F | .35" |
| 200164505 | 5076 PSI | 212° F | 4.80 lb | 6.0 | 3/8" F | 1/2" F | .35" |
| 200164506 | 5076 PSI | 212° F | 4.80 lb | 7.0 | 3/8" F | 1/2" F | .35" |
| 200164507 | 5076 PSI | 212° F | 4.80 lb | 8.0 | 3/8" F | 1/2" F | .35" |
| 200164508 | 5076 PSI | 212° F | 4.80 lb | 8.5 | 3/8" F | 1/2" F | .35" |
| 200164509 | 5076 PSI | 212° F | 4.80 lb | 9.0 | 3/8" F | 1/2" F | .35" |
| 200164510 | 5076 PSI | 212° F | 4.80 lb | 10.0 | 3/8" F | 1/2" F | .35" |
| 200164511 | 5076 PSI | 212° F | 4.80 lb | 11.0 | 3/8" F | 1/2" F | .35" |
| 200164512 | 5076 PSI | 212° F | 4.80 lb | 12.0 | 3/8" F | 1/2" F | .35" |
| 200164499 | 5076 PSI | 212° F | 4.80 lb | 3.0 | 3/8" F | 1/2" F | .35" |
| 200164513 | 5076 PSI | 212° F | 4.80 lb | 12.5 | 3/8" F | 1/2" F | .35" |
| 200164516 | 5076 PSI | 212° F | 4.80 lb | 18.0 | 3/8" F | 1/2" | .35" |
