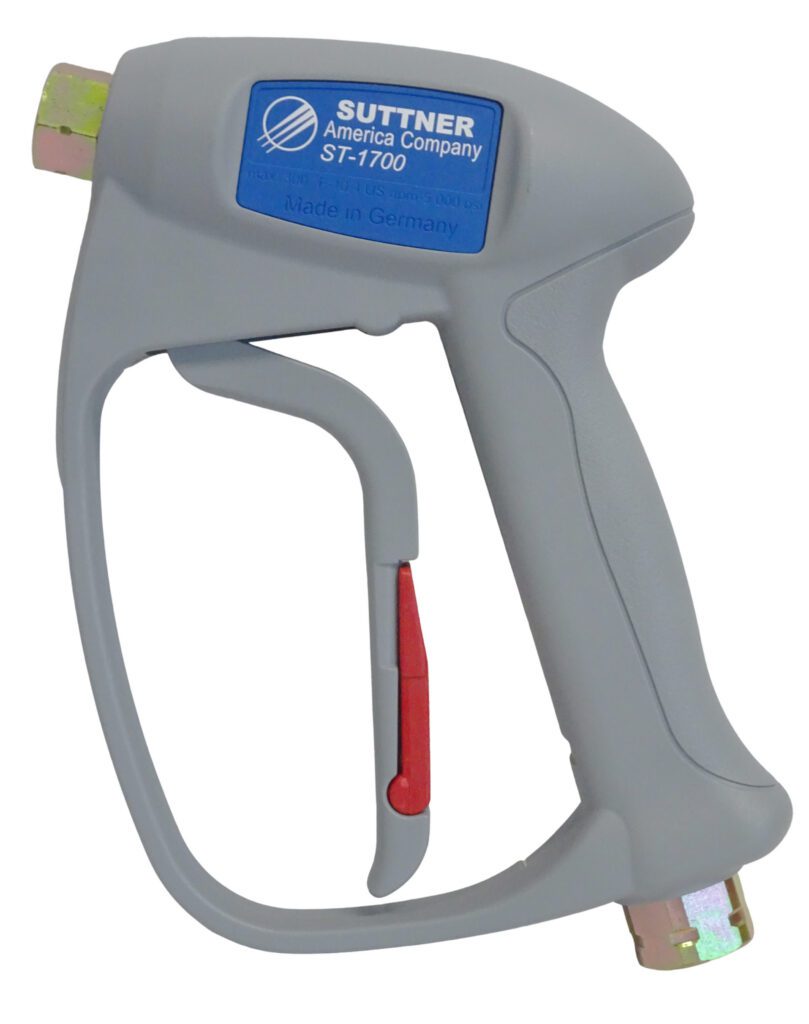

ST-1700 Spray Gun (ergonomic design for small hands)

Pressure5000 PSI
Temperature302° F
Flow Rate10.5 GPM
Weight1.25 lb
Inlet3/8" FPT
Outlet1/4" FPT

Features

• Perfect gun for smaller hand operators.
• Comfortable grip and reduces fatigue for longer working hours.
• This unique design reduces wear to a minimum on the internal
components.
• Great choice for hot and cold pressure washer use.
• Same inlet & outlet angles as our ST-1500 & ST-2000 spray guns.
• LFT (Low Friction Trigger) this gun’s trigger system incorporates a ball
between the trigger and piston rod contact area that rolls when triggered
resulting in a much easier opening and holding.
• 30% less vibration transfer than standard trigger guns when being used
with turbo nozzles, telescopic lanes, sand blasters, etc.
• Requires about 13% less squeeze force than a standard trigger gun to
open and hold the trigger. In addition, it has less back force while
spraying due to the optimum hand position.

Part # Pressure (PSI)TemperatureFlow Rate (GPM)WeightInletOutlet
201700610 5000 PSI 302° F 10.5 GPM 1.25 lb 3/8" FPT 1/4" FPT
