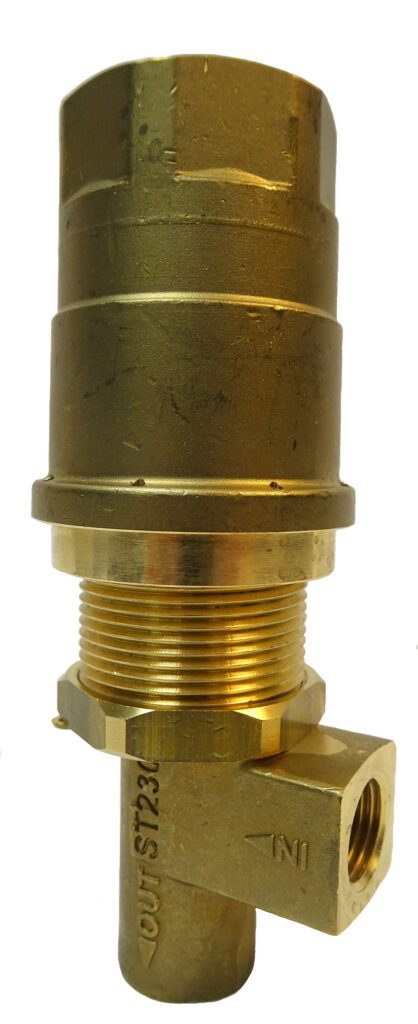

ST-230 Safety Relief Valve
| Pressure | 500-3600 PSI |
|---|---|
| Temperature | 200° F |
| Flow Rate | 8 GPM |
| Weight | .84 lb |
| Inlet | 1/4" FPT |
| Outlet | 1/4" FPT |
Applications
Ideal in-line regulator for multi-gun pumping units on self-serve car wash systems.
Perfect for pressure washer/steam combination applications.
Features
• Adjustable pressure.
• Forged brass housing.
• Special seals for maximum heat and chemical resistance.
• Valve member rides on elastomeric cushion, eliminating metal to metal contact, a common cause of regulator failure.
• Can be rebuilt without removing from the installation.
| Part # | Pressure (PSI) | Temperature | Flow Rate (GPM) | Weight | Inlet | Outlet | O-Ring |
|---|---|---|---|---|---|---|---|
| 200230501 | 500-3600 PSI | 200° F | 8 GPM | .84 lb | 1/4" FPT | 1/4" FPT | EPDM |
| 200230601 | 500-5070 PSI | 200° F | 8 GPM | .84 lb | 1/4" FPT | 1/4" FPT | EPDM |
| 200230520 | 500-2200 PSI | 200° F | 8 GPM | .84 lb | 1/4" FPT | 1/4" FPT | EPDM |
