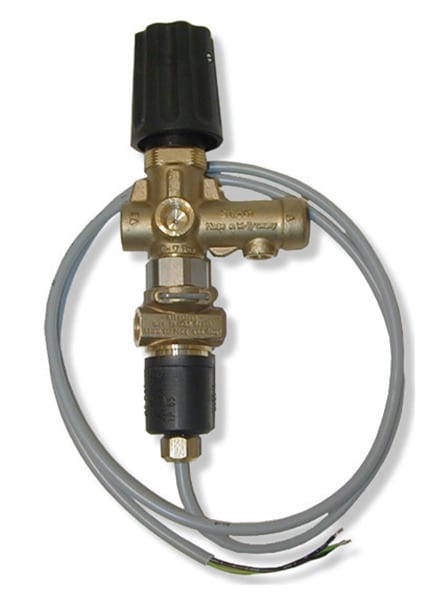

ST-261S Unloader Valve
| Pressure | 500 PSI min-3625 PSI max |
|---|---|
| Temperature | 176° F |
| Flow Rate | 8 GPM |
| Weight | 1.34 lb |
| Inlet | 3/8" FPT |
| Outlet | 3/8" FPT |
Features
• Working components constructed of high-grade stainless steel.
• PTFE and Viton seals for maximum heat and chemical resistance.
• Straight flow-through design minimizes pressure loss through valve.
• Adjustable valve allows limit setting on both maximum and minimum pressures.
• Internal bypass valve can be easily accessed and repaired without removing unloader from unit.
| Part # | Pressure (PSI) | Temperature | Flow Rate (GPM) | Weight | Inlet | Outlet | Bypass Connection | Amps |
|---|---|---|---|---|---|---|---|---|
| 200261550 | 500 PSI min-3625 PSI max | 176° F | 8 GPM | 1.34 lb | 3/8" FPT | 3/8" FPT | 1/4 | 125 VAC 5A-250 VAC 3A |
