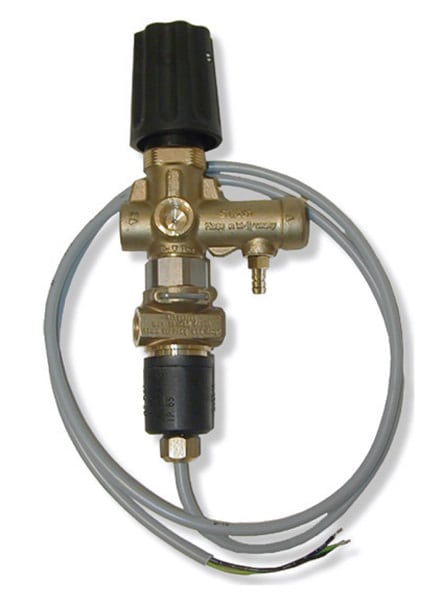

ST-261SI Unloader w/ Micro Switch & Injector
| Pressure | 500 PSI min-3625 PSI max |
|---|---|
| Temperature | 176° F |
| Flow Rate | 8 GPM |
| Weight | 1.34 lb |
| Orifice | 1.8 mm |
| Inlet | 3/8" FPT |
| Outlet | 3/8" FPT |
Applications
Built-in exclusive down stream (venturi-type) injector
with built in orifice provides a more precise siphon rate.
Features
• Working components constructed of high-grade stainless steel.
• PTFE and Viton seals for maximum heat and chemical resistance.
• Straight flow-through design minimizes pressure loss through valve.
• Adjustable valve allows limit setting on both maximum and minimum pressures.
• Internal bypass valve can be easily accessed and repaired without removing unloader from unit.
• 200261550: Injector Flow Rate - 1.5-2.25 GPM, Orifice - 1.8 mm
• 200261571: Injector Flow Rate - 2.25-3.35 GPM, Orifice - 2.1 mm
• 200261581: Injector Flow Rate - 3.35-5.0 GPM, Orifice - 2.4 mm
| Part # | Pressure (PSI) | Temperature | Flow Rate (GPM) | Weight | Orifice | Inlet | Outlet | Bypass Connection | Injector Flow Rate | Amps |
|---|---|---|---|---|---|---|---|---|---|---|
| 200261561 | 500 PSI min-3625 PSI max | 176° F | 8 GPM | 1.34 lb | 1.8 mm | 3/8" FPT | 3/8" FPT | 1/4 | 1.50-2.25 GPM | 125 VAC 5A-250 VAC 3A |
| 200261571 | 500 PSI min-3625 PSI max | 176° F | 8 GPM | 1.34 lb | 2.1 mm | 3/8" FPT | 3/8" FPT | 1/4 | 2.25-3.35 GPM | 125 VAC 5A-250 VAC 3A |
| 200261581 | 500 PSI min-3625 PSI max | 176° F | 8 GPM | 1.34 lb | 2.4 mm | 3/8" FPT | 3/8" FPT | 1/4 | 3.35-5.00 GPM | 125 VAC 5A-250 VAC 3A |
