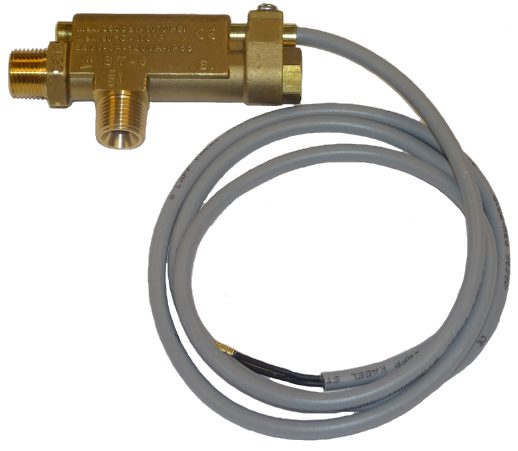

ST-6 Flow Switch
| Pressure | 75 PSI min-5070 PSI max |
|---|---|
| Temperature | 176° F |
| Flow Rate | 1 GPM min-8 GPM max |
| Weight | .80 lb |
| Inlet | 3/8" MPT |
| Outlet | 3/8" MPT |
Applications
Mounts in any position and spring assisted brass magnet configuration.
Features
• Mounts further downstream in pumping system than traditional vacuum switches, thereby minimizing potential leak points that can cause vacuum switches to close.
• Easy brass reed switch replacement.
• Can be mounted horizontal or vertical.
• 47" wire
| Part # | Pressure (PSI) | Temperature | Flow Rate (GPM) | Weight | Inlet | Outlet |
|---|---|---|---|---|---|---|
| 200006703 | 75 PSI min-5070 PSI max | 176° F | 1 GPM min-8 GPM max | .80 lb | 3/8" MPT | 3/8" MPT |
