ST-60 Chemical Injector
- Pressure:
- 3600 PSI
- Temperature:
- 140°F
- Flow Rate:
- 1.5-2.25 GPM

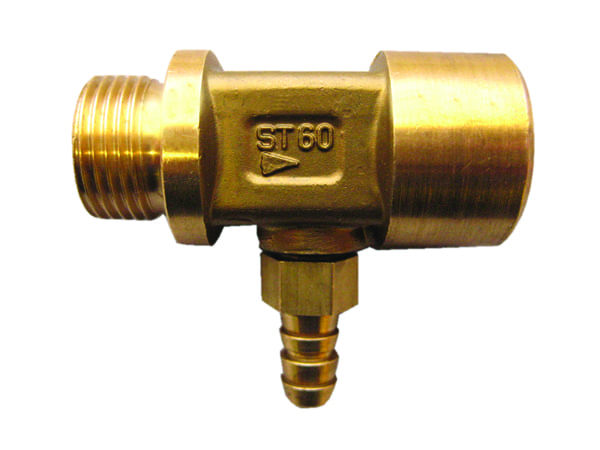

ST-60F Chemical Injector
| Pressure | 3600 PSI |
|---|---|
| Temperature | 140° F |
| Weight | .20 lb |
| Orifice | up to 5 |
| Inlet | 3/8" MPT |
| Outlet | 3/8" FPT |
Applications
The ST-60F is a downstream chemical injector that relies on a pressure drop that is created by using a larger orifice spray nozzle.
Features
• Siphon rate approximately 10:1
• Stainless steel spring and ball.
• 4 ft clear hose available, #900000041
• Fixed flow rate for accuracy.
• Forged brass housing.
| Part # | Pressure (PSI) | Temperature | Weight | Orifice | Inlet | Outlet | Material | Hose Barb | Description | Injector |
|---|---|---|---|---|---|---|---|---|---|---|
| 200060700 | 3600 PSI | 140° F | .20 lb | up to 5 | 3/8" MPT | 3/8" FPT | Brass housing | 1/4 | Orifice: up to 5 | 1.6 mm |
| 200060710 | 3600 PSI | 140° F | .20 lb | up to 6.5 | 3/8" MPT | 3/8" FPT | Brass housing | 1/4 | Orifice: up to 6.5 | 1.8 mm |
