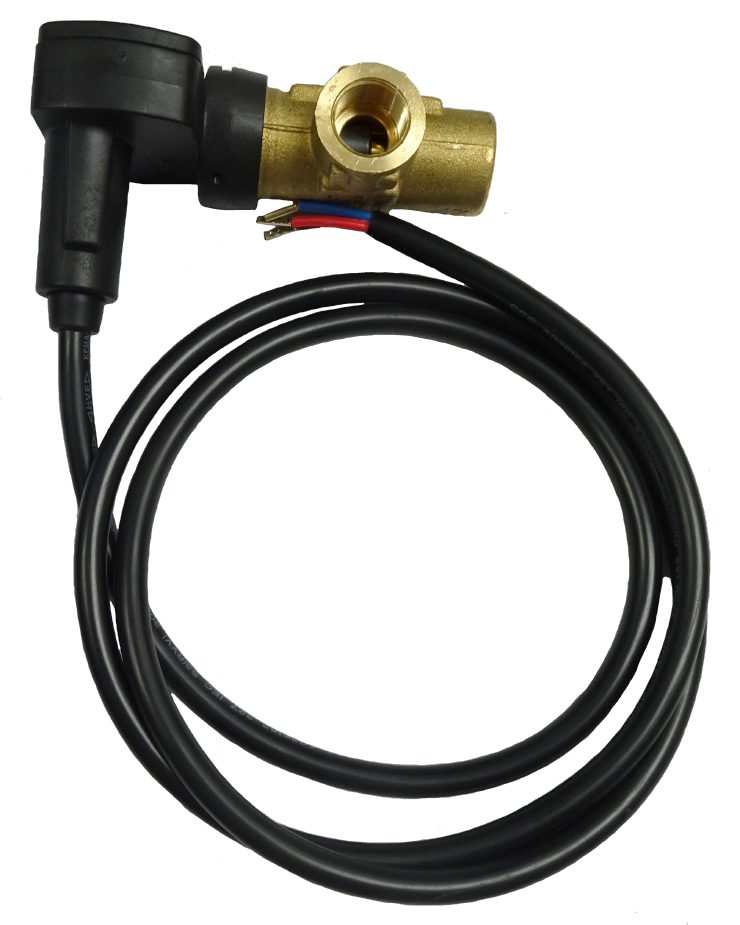

ST-7 Flow Switch
| Pressure | 5000 PSI |
|---|---|
| Temperature | 176° F |
| Flow Rate | 12 GPM |
| Weight | .80 lb |
| Inlet | 3/8" FPT |
| Outlet | 3/8" FPT |
Applications
Mounts in any position and spring assisted brass magnet configuration.
Features
• With micro-switch instead of reed switch
• Easy to install
• Resistant against shock and vibration
• IP 65 rated-water and dust proof
• 47" wire
| Part # | Pressure (PSI) | Temperature | Flow Rate (GPM) | Weight | Inlet | Outlet | Description | Volts/Amps |
|---|---|---|---|---|---|---|---|---|
| 200007500 | 5000 PSI | 176° F | 12 GPM | .80 lb | 3/8" FPT | 3/8" FPT | Switch point: 1.2 GPM | 10.1 Amps/250 VAC |
| 200007510 | 5000 PSI | 176° F | 12 GPM | .80 lb | 3/8" FNPT | 3/8" FNPT | Switch point: 0.3 GPM | 10.1 Amps/250 VAC |
| 2000075xx | 75-7200 PSI | 176° F | 12 GPM | 2.55 lb | 3/8" FPT | 3/8" FPT |
