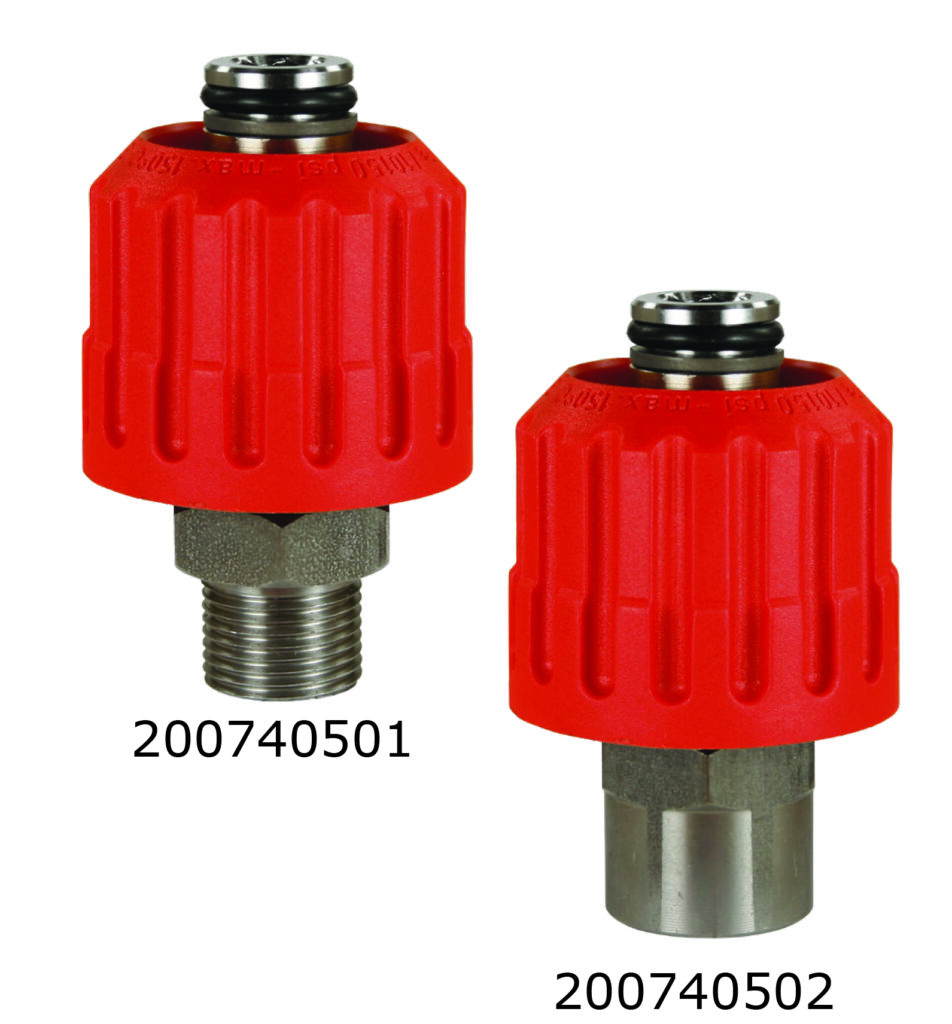

ST-740 Stainless Steel Screw Coupling
| Pressure | 10,000 PSI |
|---|---|
| Temperature | 300° F |
| Weight | .35 lb |
| Inlet | 3/8" MPT |
| Outlet | M24 |
| Box Quantity | ––––– |
Applications
10,000 PSI screw couplers, ideal for connections that have to be changed. Multiple versions to meet all of the connections applications.
Features
• Stainless steel construction for chemical & food applications.
• Allows connection of male and female M24 fittings and 3/8" & 1/4" pipe thread applications.
| Part # | Pressure (PSI) | Temperature | Weight | Inlet | Outlet | O-Ring | Yoke/ID | Box Quantity |
|---|---|---|---|---|---|---|---|---|
| 200740501 | 10,000 PSI | 300° F | .35 lb | 3/8" MPT | M24 | HNBR | M15 | ––––– |
| 200740502 | 10,000 PSI | 300° F | .35 lb | 3/8" FPT | M24 | HNBR | M15 | ––––– |
| 200740504 | 10,000 PSI | 300° F | .35 lb | 1/4" MPT | M24 | HNBR | M15 | ––––– |
