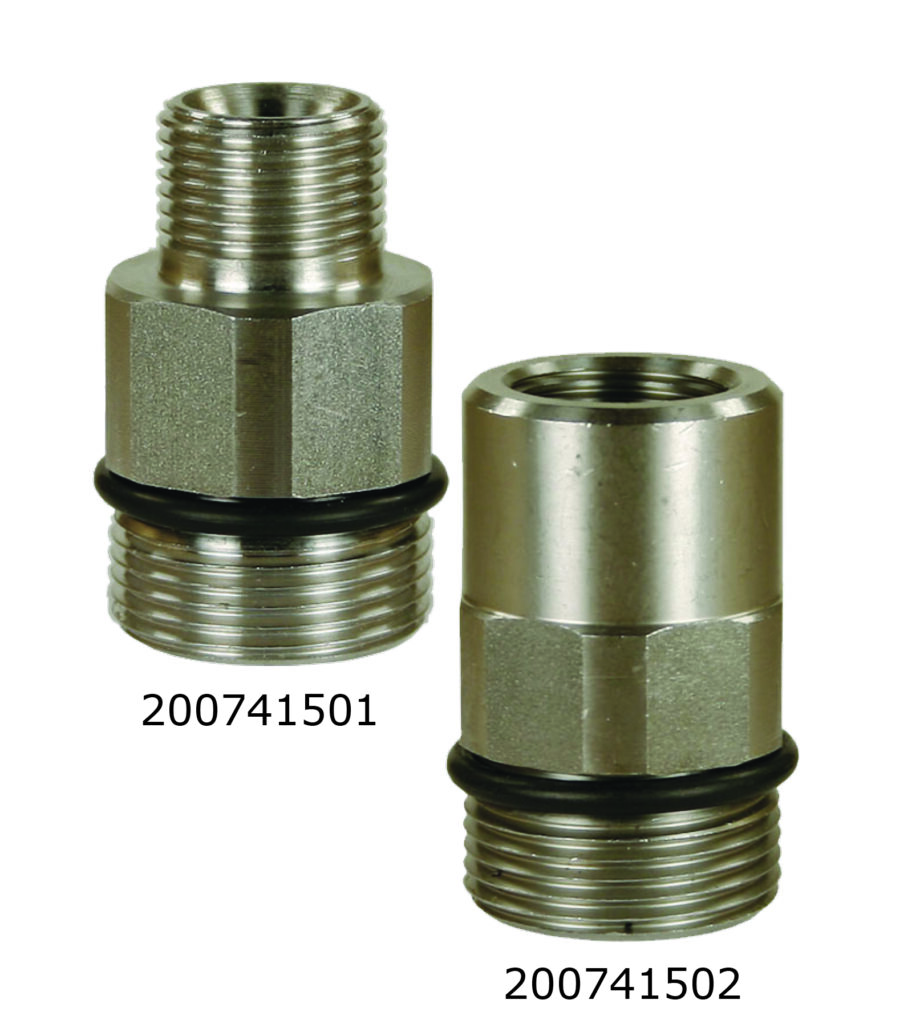

ST-741 Stainless Steel Screw Nipple
| Pressure | 10,150 PSI |
|---|---|
| Temperature | 300° F |
| Weight | .16 lb |
| Inlet | 3/8" MPT |
| Outlet | M24 |
Applications
10,150 PSI screw nipples, ideal for connections that have to be changed. Multiple versions to meet all of the connections applications.
Features
• Stainless steel construction for chemical & food applications.
• Allows connection of male and female M24 fittings and 3/8" & 1/4" pipe thread applications.
| Part # | Pressure (PSI) | Temperature | Weight | Inlet | Outlet | O-Ring | Yoke/ID |
|---|---|---|---|---|---|---|---|
| 200741501 | 10,150 PSI | 300° F | .16 lb | 3/8" MPT | M24 | EPDM | M15 |
| 200741502 | 10,150 PSI | 300° F | .16 lb | 3/8" FPT | M24 | EPDM | M15 |
| 200741504 | 10,150 PSI | 300° F | .16 lb | 1/4" MPT | M24 | EPDM | M15 |
