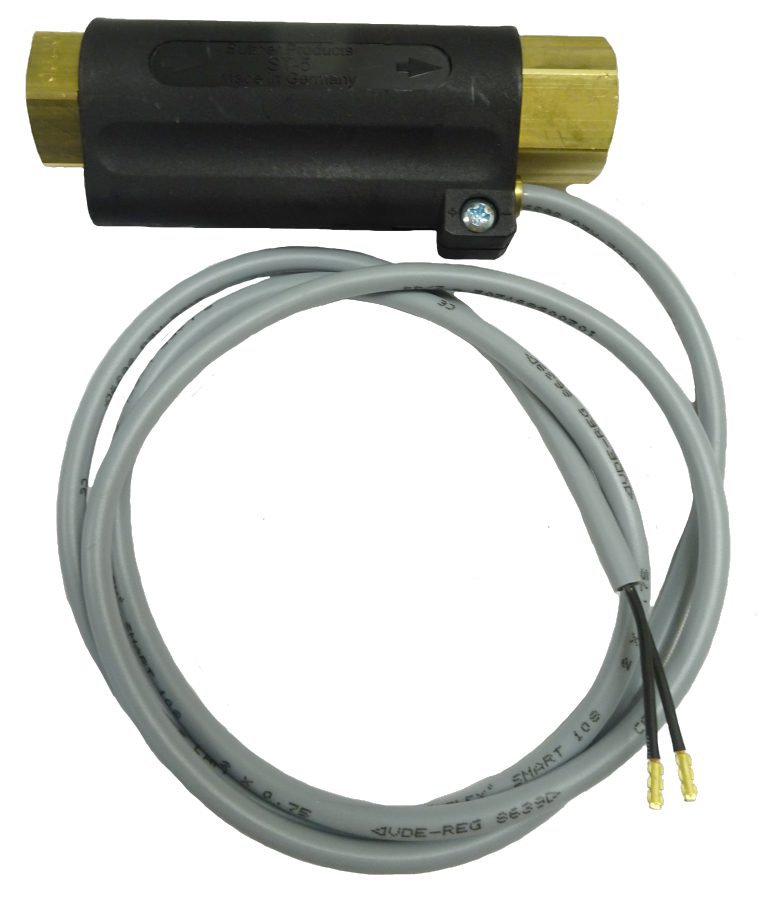

ST-5 Flow Switch (high flow)
| Pressure | 75 PSI min-3046 PSI max |
|---|---|
| Temperature | 176° F |
| Flow Rate | 4 GPM min-16 GPM max |
| Weight | .98 lb |
| Inlet | 1/2" FPT |
| Outlet | 1/2" FPT |
Applications
Mounts in any position with a free floating magnet configuration
Features
• Mounts further downstream in pumping system than traditional vacuum switches, thereby minimizing potential leak points that can cause vacuum switches to close.
• Easy brass reed switch replacement.
• 47" wire
• High Flow
| Part # | Pressure (PSI) | Temperature | Flow Rate (GPM) | Weight | Inlet | Outlet | Material | Description |
|---|---|---|---|---|---|---|---|---|
| 200005711 | 75 PSI min-3046 PSI max | 176° F | 4 GPM min-16 GPM max | .98 lb | 1/2" FPT | 1/2" FPT | Brass housing | Any Position Mount |
