ST-6 Flow Switch
- Pressure:
- 75 PSI min-5070 PSI max
- Temperature:
- 176° F
- Flow Rate:
- 1 GPM min-8 GPM max

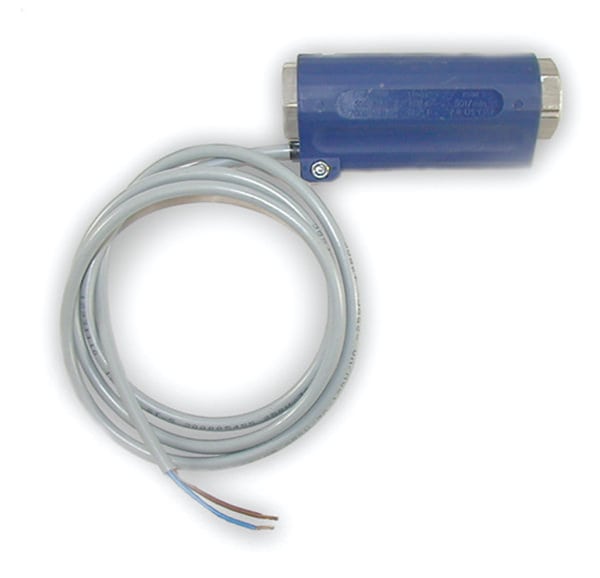

ST-505 Flow Switch
| Pressure | 75 PSI min-7300 PSI max |
|---|---|
| Temperature | 176° F |
| Flow Rate | 1 GPM min-8 GPM max |
| Weight | .90 lb |
| Inlet | 3/8" FNPT |
| Outlet | 3/8" FNPT |
Applications
Vertical mounting position and free floating brass magnet configuration.
Features
• Mounts further downstream in pumping system than traditional vacuum switches, thereby minimizing potential leak points that can cause vacuum switches to close.
• Easy brass reed switch replacement.
• 47" wire
• Stainless steel
| Part # | Pressure (PSI) | Temperature | Flow Rate (GPM) | Weight | Inlet | Outlet |
|---|---|---|---|---|---|---|
| 200505706 | 75 PSI min-7300 PSI max | 176° F | 1 GPM min-8 GPM max | .90 lb | 3/8" FNPT | 3/8" FNPT |
